Ozone Systems
Ozone systems are among the most potent oxidizing and disinfecting agents available commercially. It acts by oxidizing and disinfecting upon contact with various substances, including microorganisms such as viruses, molds, and bacteria, as well as organic and inorganic compounds like metal ions, plastics, and rubbers. Ozone gas rapidly dissolves in water, interacts with wetted surfaces, and then breaks down into oxygen within the solution, leaving virtually no residues in the treatment process.

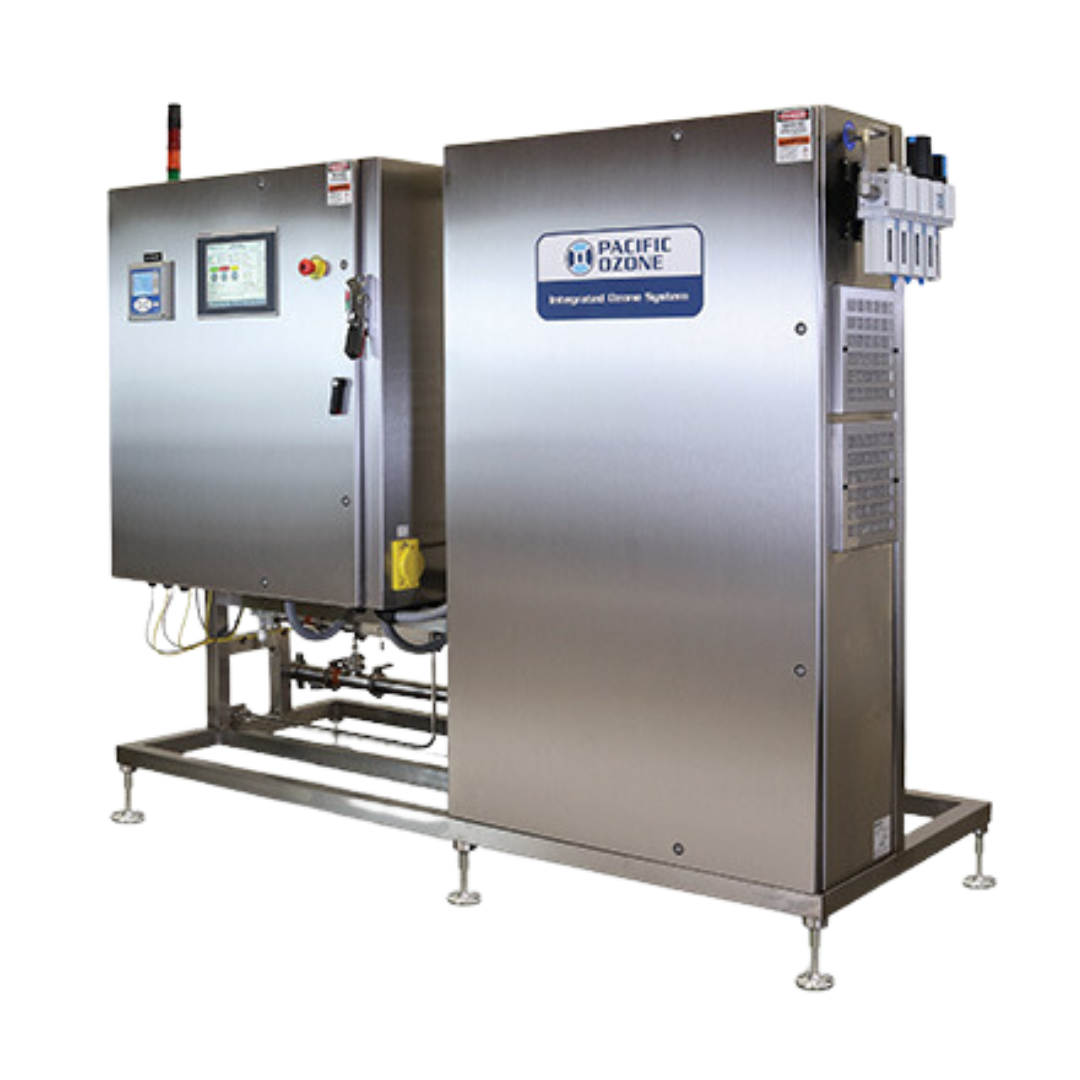

Peak Ozone Generators
PGS
Engineered for larger-scale applications, the PGS Peak Series Ozone Injection System delivers exceptional power and adaptability, producing and delivering 18–1120 g/h of ozone. Its flexible design supports multiple operating modes, features advanced integrated instrumentation, and allows for monitoring at various locations. Additionally, the system is fully commission- and qualification-ready.
The PGS Peak Series ensures reliability and efficiency, incorporating best practices for ozone treatment, making it ideal for mission-critical applications. It simplifies the integration of the four essential ozone system components: feed gas preparation, ozone generation, mass transfer and gas management, and process control. These systems are custom-configured to meet your specific disinfection requirements.
Features
- Easy-To-Use Software and 10” HMI Touch Screen
- Air-Cooled FPT Titanium Reactor Cells
- No Cooling Water is Required
- Precision Ozone Control by Powertron
- Onboard Oxygen Concentrator
- Stainless Steel Construction
- Integrated Off-Gas Management
- Ambient Ozone Detector with Safety Interlock
- Dissolved Ozone Analyzer
- Ethernet/IP Network Capable
Benefits
- Energy Efficient – Low Operating Costs Paired with On-Demand Based Ozone Generation
- Industrial Design with Simplified and Robust User Interface
- System Commission & Qualification Ready
- Automated Start, Stop & Purge Sequencing
- Visual Ozone Indication
- Ideal for Upgrading Existing Systems
Applications
- Disinfection
- Equipment Washing and Sanitization
- Ingredient Water
- Aquaculture
- Purified Water
- Sanitization
- High Purity Water Treatment
- CIP

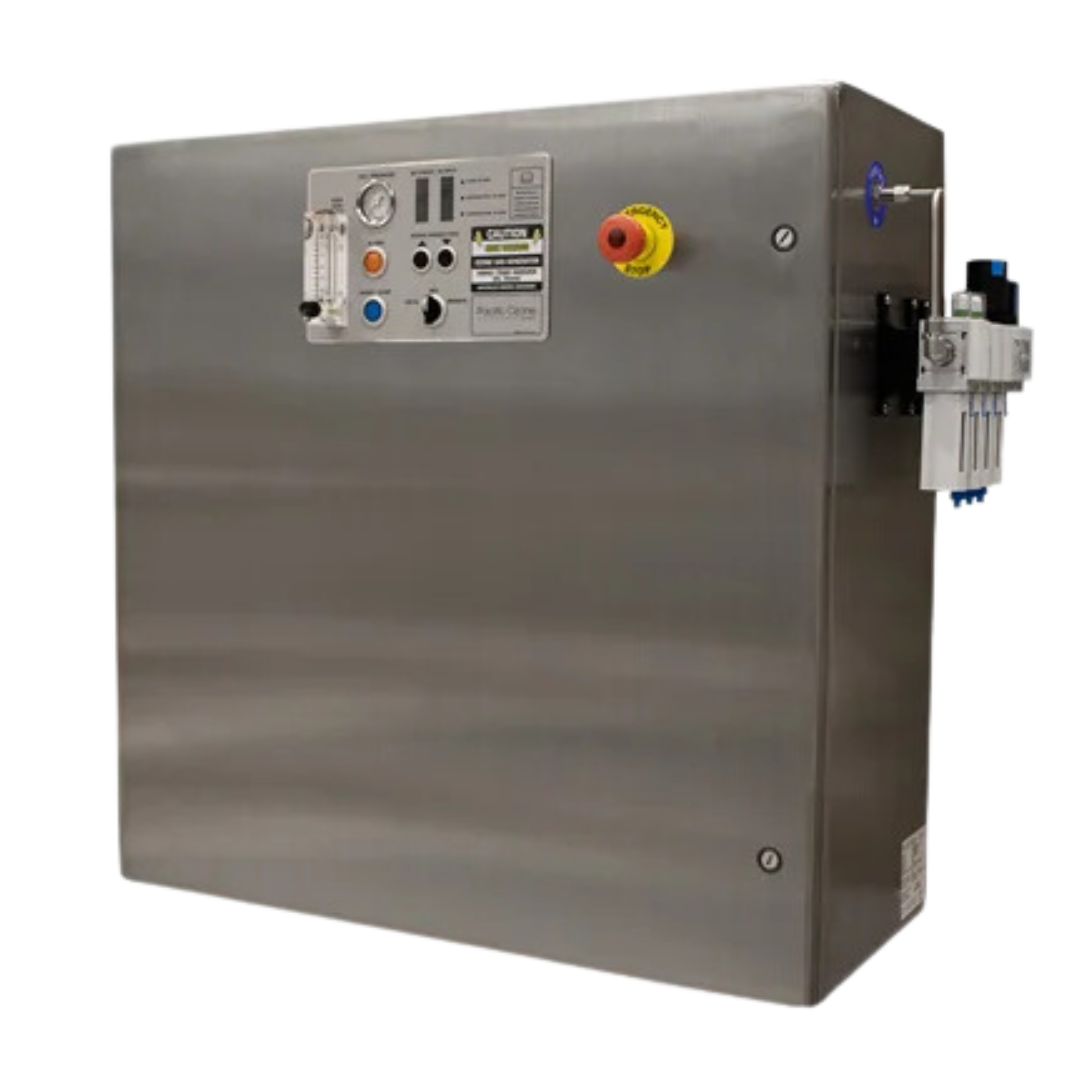

Ozone Generator Systems
GS Series
The Pacific Ozone® GS Series Ozone Generator Systems provide reliable ozone production rates of 18–70 g/h, housed in a compact stainless-steel enclosure with integrated safety features. These systems ensure precise control through regulated feed gas flow, enabling efficient ozone generation and optimized performance. Utilizing Pacific Ozone™’s proprietary air-cooled Floating Plate Technology and advanced Powertron power supply, along with onboard concentrated oxygen, the GS Series simplifies ozone production.
The ECO configuration features a wall-mountable enclosure with a streamlined DCPI interface. The ECO-COMP configuration builds on the ECO design by adding the convenience of an integrated air compressor.
Features
- Corrosion Resistant Stainless Steel Enclosure
- Air-Cooled FPT Titanium Reactor Cells
- No Cooling Water is Required
- Precision Linear Ozone Control by Powertron
- On-Board Concentrated Oxygen
- Set and Forget Back Pressure Control
- Visual Ozone Indication
Benefits
- Energy Efficient – Low Operating Costs
- Compact Footprint
- Wall-Mountable Package
- Simple Installation and Integration
- Ideal for Upgrading Existing Systems
- Instinctive Layout and Design
- Alarm and Control Logic Designed for Safety
Applications
- Disinfection
- Equipment Washing and Sanitization
- Ingredient Water
- Aquaculture
- Purified Water
- Sanitization
- High Purity Water Treatment
- CIP

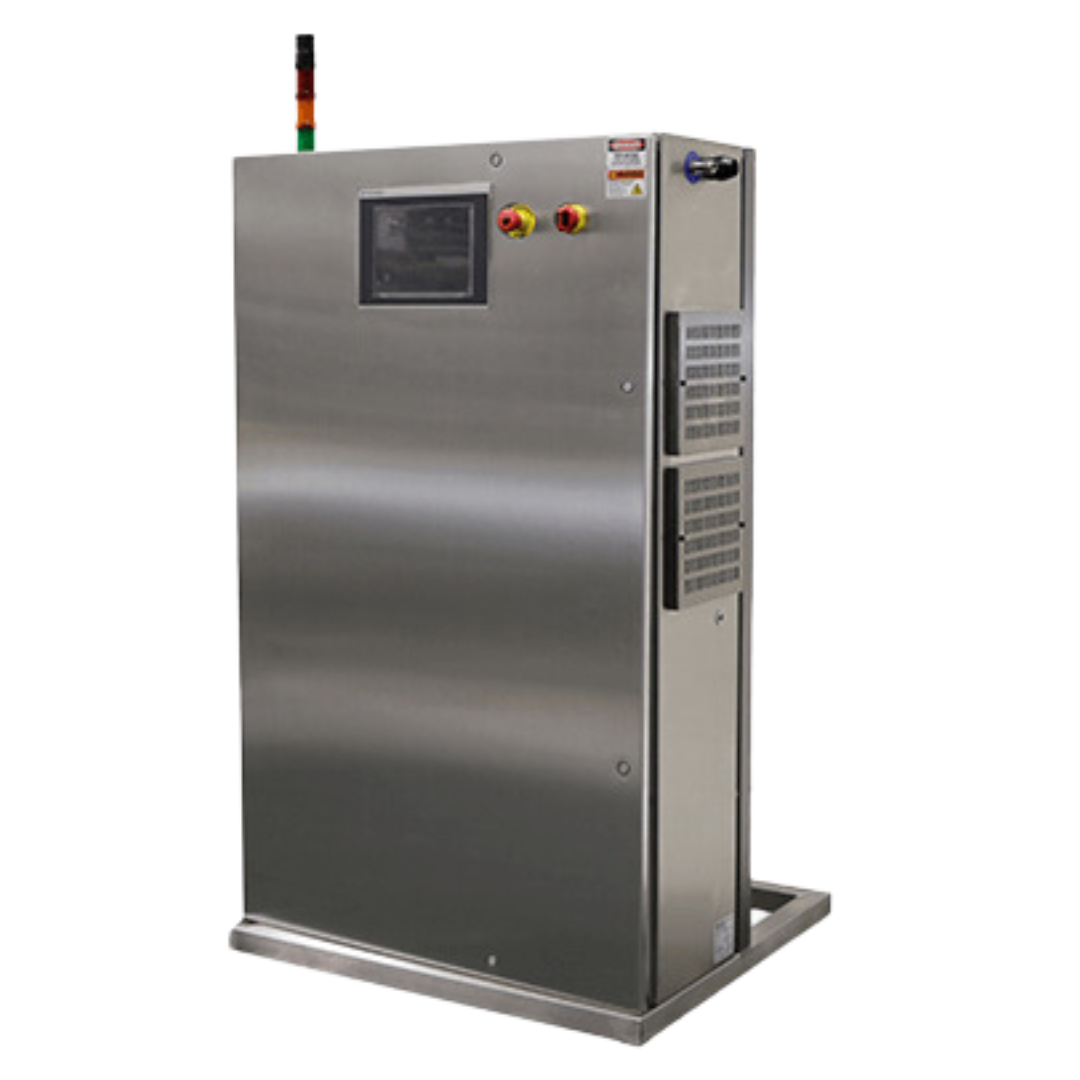

Ozone Generator Systems
MG Series
The MG Series ozone generators feature an advanced air-cooled, multi-chassis design, providing powerful and precisely controllable ozone production for large industrial applications. With production capacities ranging from 140 g/h (5 lbs/day) to 1.1 kg/h (60 lbs/day), the MG Series combines Pacific Ozone®’s air-cooled Floating Plate Technology ozone reactor cells with state-of-the-art Powertron electronics, all housed in durable industrial enclosures.
Features
- Corrosion Resistant Stainless Steel Enclosures
- Air-Cooled FPT Titanium Reactor Cells
- No Cooling Water is Required
- Precision Linear Ozone Control by Powertron
- Remote Production Control
- Full Safety Features, Over-Temp, Flow Loss, Fault Protection
- Patented Set and Forget Back Pressure Control
- Redundant Chassis Design
- 10” HMI Touch Screen
- Ambient Ozone Detector with Electrical Safety Interlock
- Ethernet/IP Network Capable
Benefits
- Energy Efficient – Low Operating Costs
- Industrial Design with Simplified and Robust User Interface
- Simple Installation and Integration
- Ability to Save on Duty-Stand-By Costs
Applications
- Disinfection
- Equipment Washing and Sanitization
- Ingredient Water
- Aquaculture
- Purified Water
- Sanitization
- High Purity Water Treatment
- CIP
